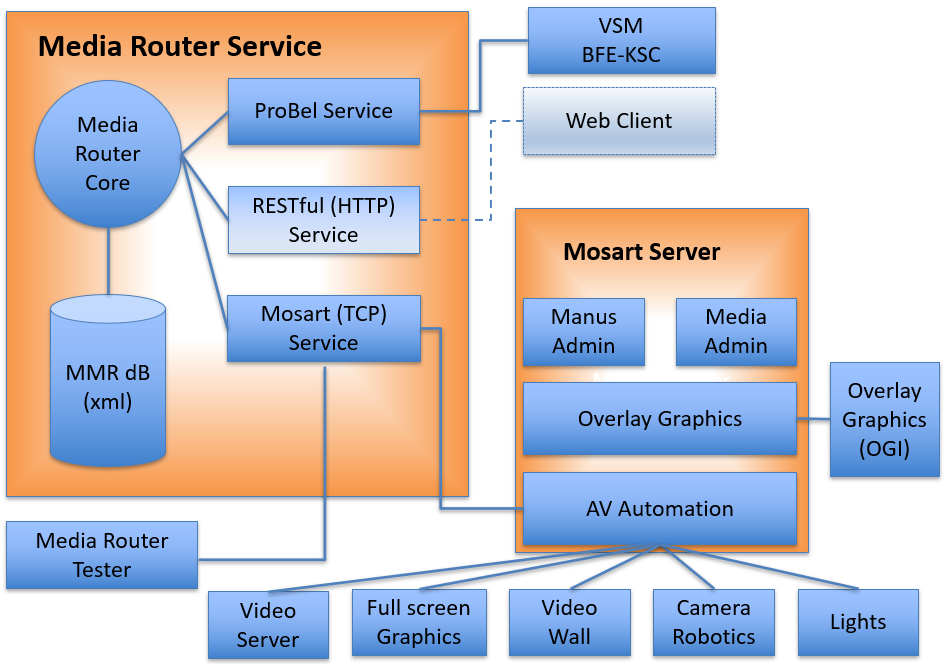

A typical setup, illustrated above, consists of the following:
Media Router service: This can be configured to support multiple services for connection.
For most cases, the ProBel SW-P-08 protocol is used for controlling the Media Router whilst the Viz Mosart (TCP) service is used for communicating with Viz Mosart servers.Viz Mosart server: Using shared resources for device types currently supported by Media Router. The AV Automation application is responsible for communication with Media Router.
Info: AV Automation can forward Media Router configuration to the other Viz Mosart server applications.
VSM BFE-KSC: Virtual studio manager (external controller) system for setting and changing Media Router crosspoints, using the ProBel protocol.
Media Router Test Application: A console application element of the Viz Mosart Test Suite, which can be used to verify Media Router configurations.
Web client: Controls the Media Router service using the Media Router REST protocol.
