Viz Mosart’s Template Router can be used for controlling ME steps on the vision mixer. The MEs can be routed to external sources like a wall or studio monitors.

Info: This is a specific example, for general use of the these features, see sections  Sourceview and Template Router.

  1. For each source that might get routed to the ME create a LIVE template source. In this example LIVE 1, LIVE 2, LIVE 3 is used.

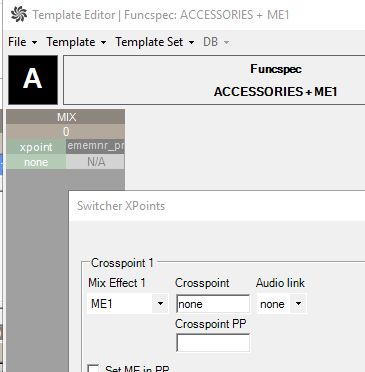

  2. For each output a Template Router accessory template has to be created for each ME, for example ME1, ME2, ME3.

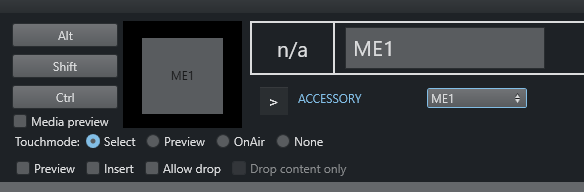

  3. Create a Template Router shortcut for each ME template. For example, ME1, ME2 and ME3.

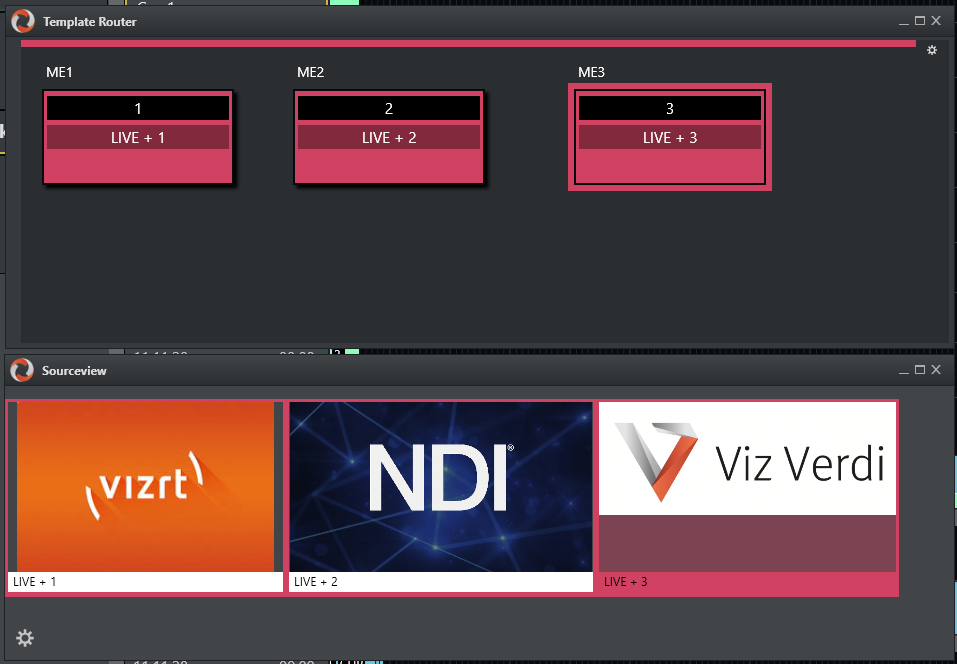

  4. You can now select sources from the Sourceview and assign to the ME template routers.
