Viz Trio Client Commands Window
The Viz Trio user interface basically uses the same macro commands as the scripting support uses. To help find the commands that are executed when different user interface operations are performed, use the commands window and look at which commands are sent.

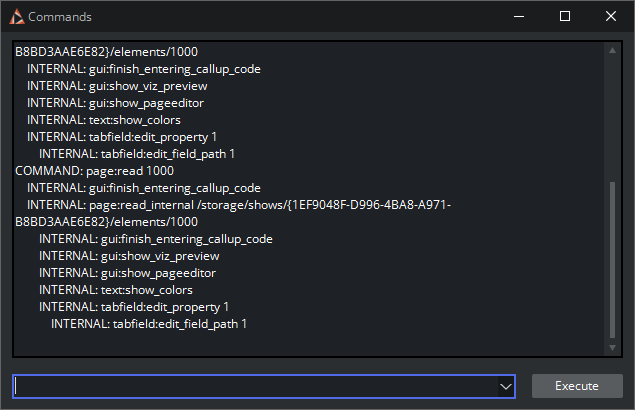

The actual commands can be seen after the colon:
page:read 1000Note: The Viz Trio Client Commands window can be very helpful when learning the system and testing out macro commands. Enter commands in the text field at the bottom and click Execute to run them.
This section covers the following topics:
To Enable the Viz Trio Client Commands Button
Click Viz Trio’s Config button, and in the User Interface > User Restrictions section, clear the Call Viz Trio Commands check box.
To Open the Viz Trio Client Commands Window
Click the Viz Trio Commands button in the lower-right corner of the application window.
Apropos and Help Commands
The Viz Trio Client Commands window contains useful features for searching for information about a command.
Use keywords apropos and help to perform look-ups in the available set of commands:
apropos: Searches command names and descriptions for a string.
help: Shows help for the specified command, or lists commands.
Example I: Apropos
The apropos command does a free text search for the given text in the macro command documentation.
COMMAND: main:apropos context_variable RESULT: show:get_context_variable(string variable) : Get the show-context-variable. show:set_context_variable(string variable, restString value) : Set the show-variant to a new value.Example II: Help
The help command provides help on a specific macro command.
COMMAND: main:help read_template RESULT: Parameters: (string templateid) Description: Read a template if concepts and variants are enabled. If not, read a normal template.Show, Context and Tab-field Commands
Show variables are global as all variables are stored on the Media Sequencer. This means that all Viz Trio applications that use the same Media Sequencer can set and get variables, and any script within a show can access the variable.
Show Variables
Use the Viz Trio Client Commands window to set show variables. The variables can be used by scripts as a means of storing intermediate values such as counters.
Commands:
show:set_variable: Set the value of a show variable
show:get_variable: Get the value of a show variable
Example commands:
COMMAND: show:set_variable MyShowVar Hello World! COMMAND: show:get_variable MyShowVar RESULT: Hello World!Script example:
Sub OnUserClick() dim myLocalShowVar myLocalShowVar = TrioCmd("show:get_variable MyShowVar") MsgBox("Variable value is: " & myLocalShowVar) myLocalShowVar = InputBox("Enter a new Value:","New Value") TrioCmd("show:set_variable MyShowVar " & myLocalShowVar) End SubConcept, Context and Variant Variables
Use the Viz Trio Client Commands window to set context variables. Context variables are different than Show Variables as context variables are used to select the context a page is taken on-air with. The following contexts are available to Viz Trio users:
Concept: A concept can be News or Sports or any other concept. Graphics in the same concept are created as individual scenes belonging to a specific concept.
Variant: A concept can have different variants of the same scene. This can be a scene with the same tab-fields, but displayed as a top or lower third.
Context: Additional user-defined contexts can be used to further differentiate a concept and its variants. For example the context Platform could have SD, HD, Mobile phones, web and so on defined within the concepts News and Sport.
Commands
If a concept, context or variant for a show is set using one of the show commands, for example show:set_variant top, this overrides the selection done in the page list’s user interface, marking the variant with square brackets. Issuing the same command, without the variant name (show:set_variant ) resets the variant to the initial selection done using the page list user interface.
Note: A get command cannot retrieve a variable’s value if a set command has not been issued first.
Available commands:
show:enable_context(): Enables concept and variant for the current show. This also separates templates and pages into their own lists.
show:set_concept(restString concept): Sets the show’s concept to a new value.
show:get_concept(): Gets the show’s concept if set by a set command.
show:set_context_variable (string variable, restString value): Sets the show’s context to a new value.
show:get_context_variable (string variable): Gets the show’s context variable if set by a set command.
show:set_variant (restString variant): Sets the show’s variant to a new value.
show:get_variant(): Get the show’s variant if set by a set command.
playlist:set_concept(string value): Sets the concept for a show playlist.
Note: The set_variant and get_variant commands are aliases for the context commands when setting and getting variants, and are not applicable in other contexts.
Example commands:
COMMAND: show:set_context_variable concept Sport COMMAND: show:set_context_variable variant Lower COMMAND: show:set_context_variable platform HD COMMAND: show:get_context_variable concept RESULT: Sport COMMAND: show:get_context_variable variant RESULT: Lower COMMAND: show:get_context_variable <contextname> RESULT: HDA parameter must first be set using the commands before it can be shown using the commands. Output normally differs according to the scene design, all the output is therefore not shown.
IMPORTANT! Command parameters are case sensitive.
Tab-field Variables
Use the Viz Trio’s commands window to set custom properties for tab-fields. The property can be used for scripting to set intermediate properties for tab-fields.
Commands:
set_custom_property (string tabfieldName, string value)
get_custom_property (string tabfieldName)
show_custom_property_editor_for_current_tabfield
Example commands:
COMMAND: tabfield:set_custom_property 01 string COMMAND: tabfield:get_custom_property 01 RESULT: string
