This section covers problems reported by Story Recorder, what each message means, and how to resolve it. It also lists the data to collect before contacting Vizrt Support.

How Story Recorder Reports Problems

Story Recorder shows messages in two places, and both show the same text:

• The Story Recorder panel, at the top of the panel.

• The toolbar strip in the Viz Mosart timeline view.

The toolbar also shows the live Story Recorder status next to the on/off switch: SR Off, SR Starting..., SR Prerolling..., SR Ready!, SR Paused, and SR Stopping.... The toolbar and the Story Recorder tool window always show the same status.

Messages carry a severity of Information, Warning, or Error. Confirmation dialogs appear separately, as modal windows.

Session states

Story Recorder moves through the following states. The state determines which operations are accepted, so it explains several of the messages below.

Message Reference

Values shown as <port> or <folder> are filled in at runtime.

Information

Errors

Warnings

Confirmation dialogs

Story Recorder Will Not Enable

Story Recorder did not start: the Mosart Logging Service is not responding

Symptoms: the switch shows ON but the status stays SR Off, the item list stays empty for the whole show in the Story Recorder Panel, and a few seconds after enabling, the panel shows:

Story Recorder did not start: the Mosart Logging Service is not responding. Check that the service is running on the Mosart server, then switch Story Recorder on again.

A related message, Story Recorder did not start, although the Mosart Logging Service is responding, means the service answered but the Story Recorder adapter failed or was slow to start: switch Story Recorder on again before working through the list below. Note also that when logging is off there will be no Mosart logs to check.

Story Recorder builds its panel entirely from AsRunLog events. Anything that stops those events from being written stops Story Recorder, so work through the checks below in order.

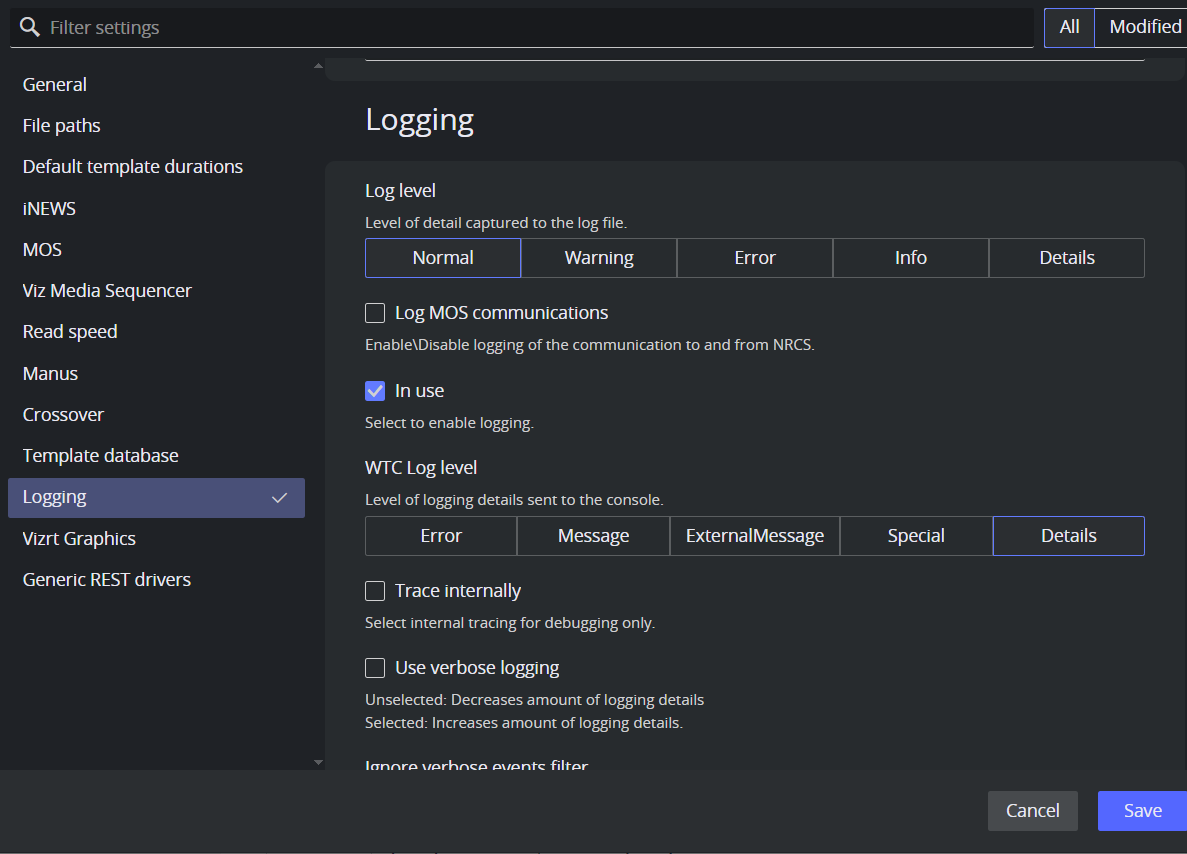

1. Verify in Viz Mosart Manus Administrator that logging is enabled: type settings, open the Logging section, and check that In use is selected.

2. The Logging Service is not running. Check the Windows service, or run it as a console application.

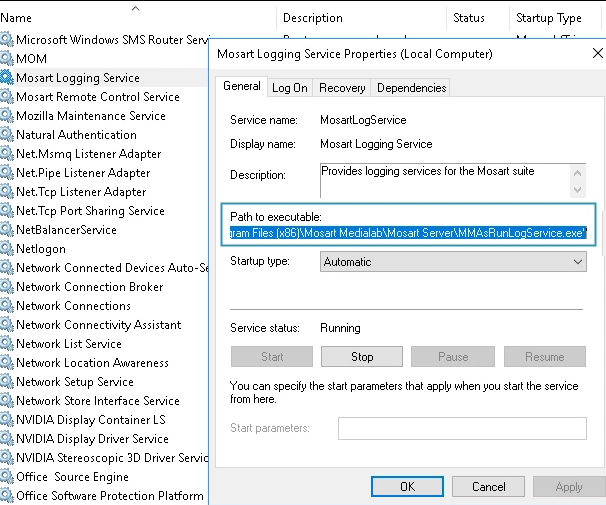

3. The Logging Service points at the wrong installation. This is the most common cause. When the Viz Mosart client, Audio Player, and Server are installed on one machine, the Server must be installed last, because the Logging Service has to point at the Server installation folder. If it points at the client or Audio Player folder instead, the Story Recorder adapter is not loaded. Run MMAsRunLogService.exe from the Mosart Server installation folder as a console application to confirm, then reinstall in the correct order.

4. A second instance refuses to start. A Mosart service started twice from the same folder, for example as a Windows service and from a console, does not start a second time. It reports <application> is already running on this machine, started from <path>. Only one instance can run at a time, as a Windows service or from a console, not both. This one will not start. The instance already running keeps working, so decide which one you want, stop the other, and start it deliberately.

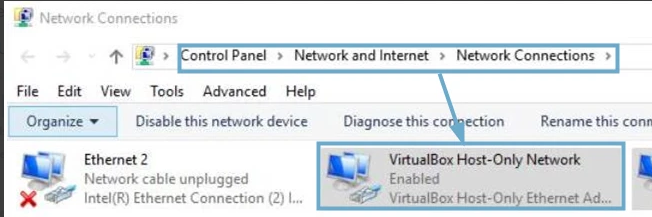

5. A virtual network adapter is interfering. If the client connects to a remote server, make sure no VirtualBox or comparable virtual adapter is installed on the server machine.

6. If the Viz Mosart Logging Service is restarted while other applications are already running, those applications stop writing to the AsRunLog and do not recover on their own.
   After any restart of the Mosart Logging Service, also restart AV Automation and the Overlay Graphics Interface.
   Until they are restarted, events are missing from the AsRunLog and Story Recorder does not work correctly. For example, recording may appear to start OK, but no story items show up in the Story Recorder panel, and graphics encountered in the rundown cannot be backtracked.

7. Settings are invalid. Check for the message Failed to validate the following properties, correct the listed settings, and restart the Mosart Server Log Service.

Recording ports not found

The message No recorders configured for Story Recorder means no usable record port was found.

• Check the recorder port configuration in AV Automation, under Devices > Properties > Video Servers, and confirm that the port is enabled in the Story Recorder section.

• Add a record port to the current salvo if none is present. Recordings are prepared on the record port of the current salvo, so if the message appears after a salvo change, check that the new salvo has a record port.

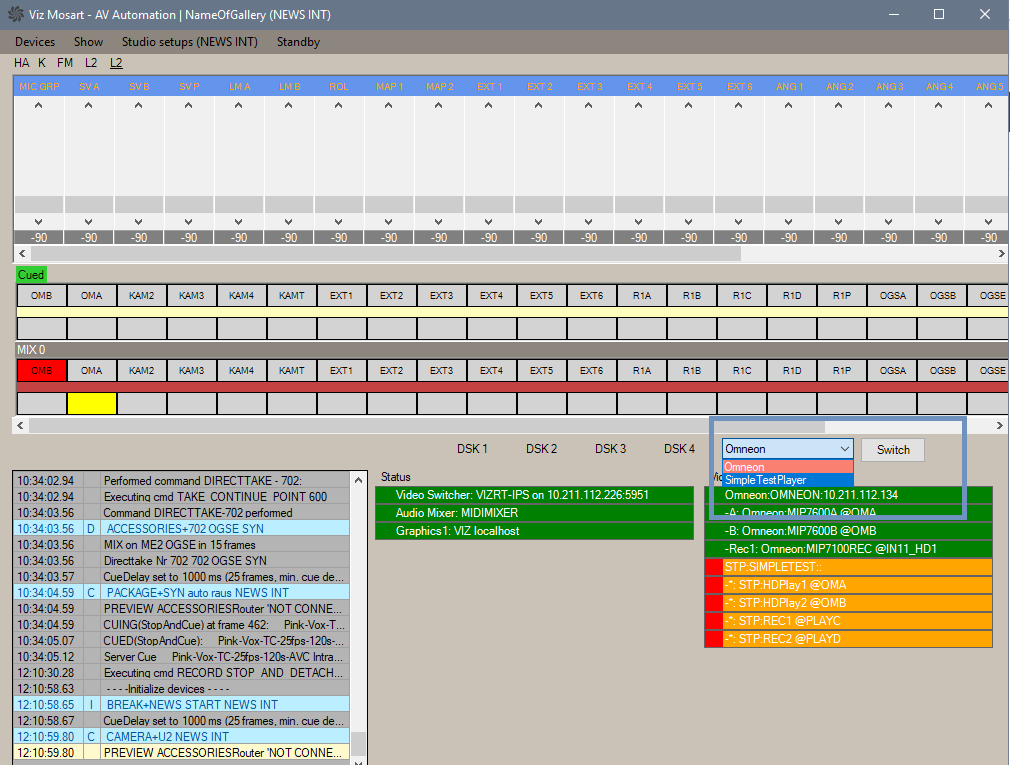

• After changing the port configuration itself, force a reconnect with Ctrl+Shift+V, or restart AV Automation.

Recording Does Not Start or Items Are Missing

Recording not starting

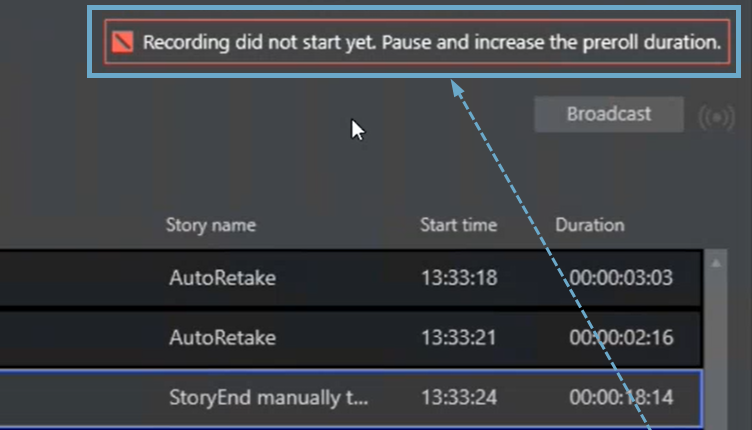

If starting a recording produces

the pre-roll time is not long enough for the recording hardware to prepare itself.

• At the top of the Story Recorder panel, increase Preroll (seconds) to the hardware start time plus one or two seconds, typically 10 to 15 seconds in total.

Story items do not appear in the Story Recorder panel

Story Recorder adds a row when a story item affects the PGM bus of the virtual PP. An item that does not switch a crosspoint on PGM is executed normally but produces no row. This is expected behavior, not a fault. For the full list of what is recognized and what is ignored, see the Show Design for Frame Accuracy and Story Recorder section.

If items that should appear are missing:

• Confirm that logging is enabled in Viz Mosart.

• Confirm that the Mosart Logging Service is running and points at the Server installation.

• After a Logging Service restart, perform an action in the client such as reloading the rundown, so that the connection is re-established.

• Restart the Overlay Graphics Interface, otherwise graphics events are not logged and graphics cannot be backtracked on a retake.

Timecode and Genlock Problems

These faults usually show up as clips whose content is shifted rather than as a failure to record.

Genlock mode is not enabled

Genlock is not active, so Story Recorder falls back to time of day for its timecodes. Recording still runs, but edit points are not frame accurate. This is acceptable for testing only. For production use, enable genlock and complete calibration. See the Frame Accurate System Operations section.

Unreliable genlock

The warning about unreliable genlock means Viz Mosart detected a problem with the clock source and fell back to its internal clock. An occasional occurrence is the built-in safety mechanism working as intended and can be ignored. Frequent or persistent occurrences point to a genlock or timecode signal problem that must be fixed.

The AV Automation status bar will also indicate that there is an issue with the selected clock source:

If the warning is shown infrequently, then the message can be safely ignored and the show can continue as planned.

Viz Mosart has a built-in safety mechanism which takes care of intermittent or lost external genlock and/or timecode signal (refer to section Genlock and Timecode Reliability in the topic Frame Accurate System Operations).

If the warning appears frequently or it is persistent, the genlock signal and/or timecode signal have become unreliable and must be fixed.

Time sync issue between the video server and Viz Mosart

Story Recorder compares the start of media reported by the video server against its own clock when recording starts. If the difference exceeds the tolerance, it logs the difference in frames and raises a warning. Recording is not blocked, but mark in and mark out values may be offset.

The comparison runs once per recording, at record start. It is not repeated during the session, so two clocks that pass the check and then drift apart produce no second warning. This is why both machines should hold time from NTP rather than being set close by hand.
Check that Viz Mosart and the video server use the same time convention. Story Recorder computes each mark as the story timecode minus the start of media reported by the video server, and it uses that start of media exactly as delivered, so a difference in convention becomes a fixed offset. Use local time in Manus Settings must match the time reference of the master clock that feeds the video server.

External clock is local time in AV Automation is a separate setting. It describes whether the incoming timecode signal carries local time or UTC, and Viz Mosart converts between the two when they differ. It does not have to match Use local time.

All clips are offset by the same amount

Every story is out by the same amount, and the offset does not grow through the show. The size of the offset tells you which cause it is.

A few frames

The mark lands slightly before or after the picture it should cut on. For example the EDL says a story starts at 22:07 while the video actually starts at 22:10: three frames early.

This is equipment latency. Between Viz Mosart telling the switcher to put a source on air and the recorder writing that frame to the file, time passes, and Viz Mosart has to be told how much. It is corrected in AV Automation > Devices > Properties > Genlock, in the Calibration group.

Adjust PGM-Recorder. Add the number of frames the EDL is early, so an EDL three frames early with PGM-Recorder at 0 becomes 3. If the EDL is late rather than early, reduce the value by the same amount.

Do not use Switcher for this. That value also controls when Viz Mosart sends commands during a live show, so changing it to correct an EDL offset re-times the show itself. Video Server is for clip playout and does not affect marks at all.

Click Apply. No restart is needed. If a session is running, the new value is used from the next one.

Around a second, or an exact number of hours

Too large for equipment latency, and calibration cannot correct it.

A whole number of hours is a time convention mismatch: the recording carries UTC while Viz Mosart works in local time, or the reverse. See Time sync issue between the video server and Viz Mosart, and on TriCaster, TriCaster start of media is UTC.

Around a second, with the timecode feed healthy, usually means Viz Mosart is reading the start of media from a different recording than the one it is cutting. See Viz Mosart is reading the wrong recorder output.

Wildly wrong, or a negative position

The frame rate in Viz Mosart does not match the recorded output. The error scales with the time of day the recording started, so it is large and looks arbitrary. See The frame rate does not match the video server.

The offset is a few frames but genlock is not calibrated at all

If calibration has never been run, do that rather than guessing a single value. See Frame Accurate System Operations.

If the offset grows through the show, it is not this section. See Unreliable genlock.

Only the first story is offset

The request for start of media is asynchronous. If the first story is taken before the video server answers, that story falls back to an estimate from time of day while later stories use the value reported by the server. Allow the session to settle before taking the first story.

The frame rate does not match the video server

Viz Mosart computes each mark as the story timecode minus the start of media, using the frame rate configured in Viz Mosart. On a TriCaster, the start of media arrives over the TriCaster REST API, and Viz Mosart converts it using the frame rate that TriCaster reports for that output. Both halves of the subtraction can therefore be expressed in different units. Nothing in Viz Mosart compares the two frame rates, so a mismatch passes unnoticed.

Symptom. A mismatch does not produce a small offset. The error scales with the time of day at which the recording started, so clips start at a wildly wrong point in the recording, or at a negative position. The export then fails or returns the wrong material.

Fix. Set the Viz Mosart frame rate to the frame rate of the recorded output.

Viz Mosart is reading the wrong recorder output

Viz Mosart matches its recorder port to a TriCaster output row by name, so a port named Rec1 reads the row named Output1. If the program is recorded on a different row than the one Viz Mosart queries, the start of media comes from a different recording. Every clip is then offset by a constant amount, equal to the gap between the moments the two recordings were armed.

Reconfiguring the TriCaster Setup > Output tab is a common way for rows to move, so check this after any change there.

Fix. Make the Viz Mosart recorder port name match the TriCaster output row that carries the recorded program.

TriCaster start of media is UTC

On TriCaster the start timecode of a recording comes from the NDI recorder, and it is UTC by default. Enabling LTC in TriCaster overrides that default. When Viz Mosart is configured for local time while the recording start timecode is UTC, every mark carries a whole-hour offset.

Fix. Enable LTC in TriCaster so the recording carries the house timecode rather than UTC, then set Use local time in Manus Settings to match the convention that timecode uses. External clock is local time in AV Automation describes the incoming timecode signal and is independent of this; it does not have to match Use local time.

TriCaster stops reporting start of media

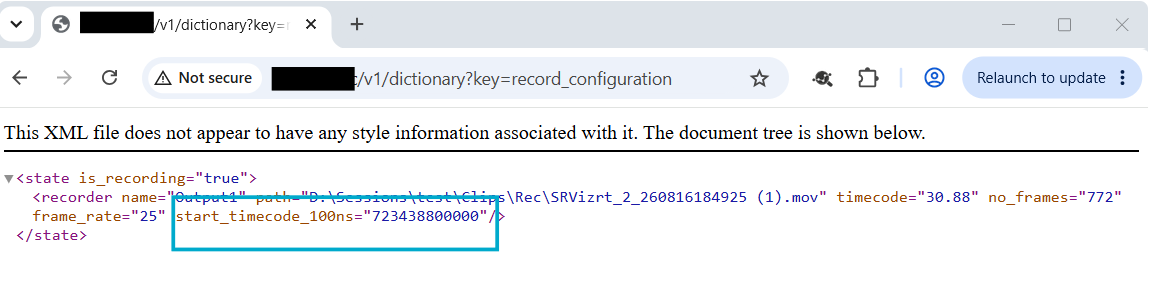

Viz Mosart asks TriCaster for the start of media of a recording over the REST API, and computes every mark from it. TriCaster can stop answering that request while it otherwise keeps recording normally, and it never answers when it has no timecode source at all.

Symptom. The export job fails, or the story clip is cut at the wrong point in the recording. No start of media for the recording appears in the Mosart log. TriCaster itself looks healthy.

Fix. Restart TriCaster. That clears the case where TriCaster answered earlier in the session and then stopped. Start the recording in TriCaster, wait few seconds and then open this URL in a browser: http://tricaster-server/v1/dictionary?key=record_configuration. The attribute start_timecode_100ns should have a value:

Clip Production and Publishing Failures

Mimir: timeout waiting for ingest

Story Recorder waits for the growing recording to be ingested before it asks Mimir to render a story clip. When the wait runs out, no clip is produced for that story.

The log signature. Three lines appear together:

• Timeout waiting for ingest on recording <id> to render clip for item <id>. Needed frames: <n>

• Recording <id> not ready for rendering story clip <id>. Sending the command anyway.

• Giving up render story clip <id> from rec <id> after <n> attempts. Last response: 400 BadRequest

Reading the numbers. Needed frames is how much of the recording had to be ingested before the clip could be cut. Divide it by the system frame rate to get that amount as a duration, which is how far into the recording the story ended.

The attempt count separates two different faults. after 1 attempts means the ingest wait consumed the whole retry budget, so the render never got a real attempt. A count above one means ingest completed and Mimir rejected the render itself, which is a different problem and is not solved by changing the retry settings.

How the retry settings behave. The Mimir retry settings do not work the way their names suggest, so read this before changing them.

• Retry start delay elapses first and is not counted in the budget.

• Retry total duration is a single budget shared by the ingest wait and the render retries. A long ingest wait leaves nothing for the retries.

• Retry interval is the gap between ingest checks, and then the gap between render retries.

• A hard ceiling of 15 render attempts applies regardless of the time budget.

• Only a validation error meaning the media is too short is retried. Other errors stop the sequence immediately, whatever the settings say.

Check the causes in this order.

1. The recorder is not using a low latency wrapper. On a Harmonic Spectrum, the record port Media Wrapper Format must be MXF OP1a (Standard, Low Latency). Plain MXF OP1a (Standard) delays exposure of the growing file, so ingest cannot keep up. This was the confirmed cause in a real customer case.

2. The recorder is not using an I-frame only format. Long GOP intermediate recordings are not supported.

3. Ingest throughput is behind the recording. Mimir is taking in the growing file more slowly than the video server writes it. Fixing that is an ingest-side performance question rather than a Viz Mosart setting.

4. The retry budget is too short for the story length. Convert Needed frames to a duration and compare it against Retry total duration.

5. The Kelda config ID is wrong. Mimir then uses the wrong ingest configuration. Confirm that the ID matches the ingest configuration in the Mimir tenant.

6. The path between the video server storage and Mimir is slow or unreachable. Check the network route and the storage that Mimir reads from.

Those six cover the Viz Mosart and recorder side. Causes on the Mimir and Kelda side are not limited to the ones listed, because the ingest and render steps run there rather than in Viz Mosart. Viz Mosart can only report that the recording did not become available in time.

What to check on the Mimir side. Go through these with whoever administers the Mimir tenant.

• Whether the recording item exists in Mimir at all. Viz Mosart creates a placeholder item first, and reports Failed to create recording placeholder item in Mimir if that step fails. Viz Mosart then polls that item to watch ingest progress, so a missing or wrong item means the wait can never succeed.

• Whether Kelda is ingesting that item, and whether the ingest is progressing, stalled, or never started.

• Whether the Kelda config ID in the Story Recorder settings matches an ingest configuration that exists and is active in the Mimir tenant.

• Whether Mimir and Kelda can reach the storage where the recording is being written. The render request refers to the recording by path, so the ingest side needs access to that location.

• Whether the Preset ID matches a valid render job preset in the Mimir system settings.

• Whether the Mimir tenant has capacity, or whether ingest and render jobs are queueing behind other work.

If the recording item is not progressing in Mimir while the recorder is confirmed to be writing a growing file, the investigation belongs with the Mimir and Kelda side rather than with Viz Mosart. Hand over the three log lines, the recording item identifier, the anchor clip identifier, the Kelda config ID, the preset ID, and the time the recording started.

Mimir: other failures

• Failed to create recording placeholder item in Mimir. Check the Generic REST device, and that Mimir is reachable.

• If a render fails when transcription is enabled, check that the language code and transcription service pair matches a transcription configuration in the Mimir tenant settings. An unmatched pair fails the render.

• Invalid JSON in any of the optional request templates is ignored with a warning and the defaults are used, so it never fails the call on its own.

TriCaster export

If an export does not appear, check the export preset names, which are separated by a vertical bar, and the credentials in the video server connection string. For story clip production, the delay before the export job is submitted gives TriCaster time to finalize the growing recording. Increase it if exports fail on long stories.

Vantage and EDL output

• Nothing arrives at the transcoder. Check that the EDL watch folder is reachable and that the Mosart Server Logging Service account can write to it. The local EDL folder and the watch folder must be different.

• Duplicate jobs. Every press of Deliver sends a new task and creates a new take. The counter is cumulative and never decreases. Cancel unwanted jobs in the transcoder job queue.

Snippet review clips

If no review snippet appears after a retake, check that Viz Coder is installed, that the snippet folder is configured and writable, and that a default player for .mxf files exists on the client machine. Snippet failures do not affect the retake itself.

Pause and Retake Errors

Pause is ignored

The warning Pause ignored: retakes are switched off in the EDL output settings means Enable retakes is off, so the timeline cannot be paused for a retake. The retake, preroll, and pause controls are greyed while it is off. If the workflow uses pause and retake, switch Enable retakes on in the EDL output settings and save while Story Recorder is off. See Show Clip Production Setup.

Invalid retake position

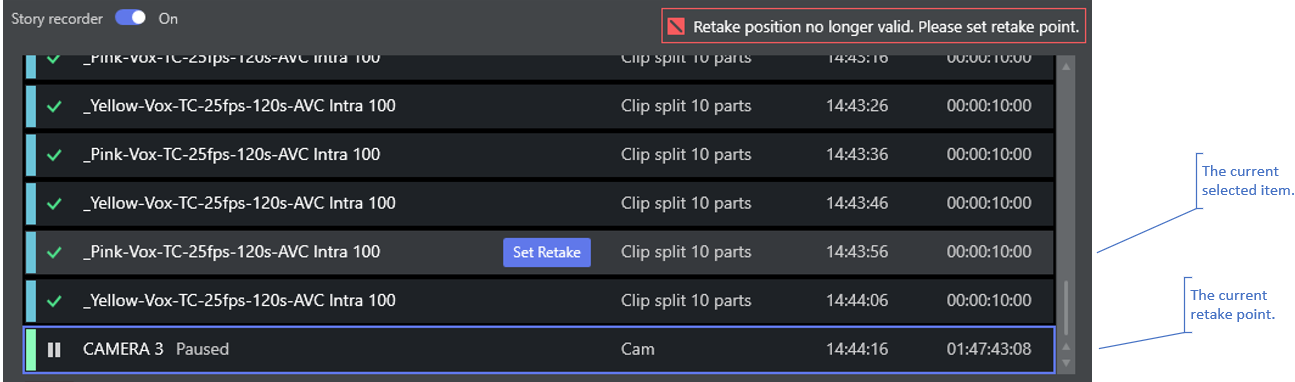

If you get the error notification Retake position no longer valid. Please set retake point this means that you restarted the show after a pause, but the selected story item is not the retake point (the story item with the Set Retake button):

To fix, do one of the following:

1. Select the current retake point, if this has changed by mistake, or

2. Make the selected story item the new retake point by clicking the row's Set Retake button.

Retake point replaced by an earlier retake

The warning The retake point is no longer valid: the take it pointed to was replaced by an earlier retake. Select another retake point means the take that the selected retake point referred to no longer exists, because an earlier retake superseded it. Nothing is removed: the recorded items and their EDL entries are kept. Select another retake point and continue.

Error when pausing the story

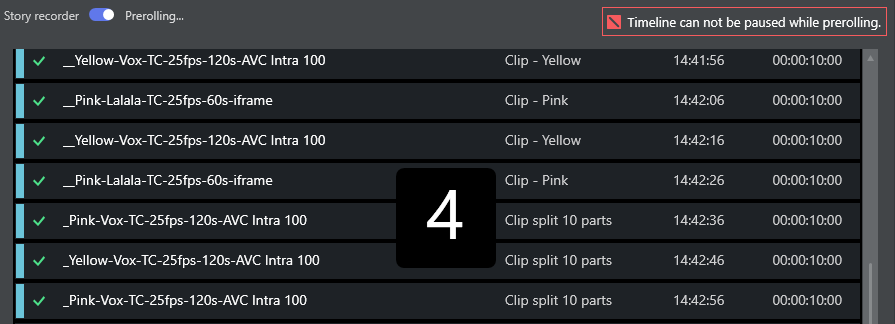

If you get the error notification Timeline can not be paused while pre-rolling, this means you are trying to pause while the system is in pre-roll mode. The pre-roll process can not be interrupted.

If this action was done intentionally, let the pre-roll time out and auto-take the item to be retaken, and then pause again.

Retake requested too early

The messages Waiting for recorder to pause and The recording has not yet started both mean the session is not yet in a state where a retake can be set. Wait until the panel shows Paused, then try again.

Naming of the Final Clip

If a final clip name supplied by the NRCS does not appear in the Story Recorder panel:

• The name is read from the first story in the NRCS rundown. Check the status of the first story. If it has been set to float and is not displayed in Viz Mosart, add the name to whichever story is now first.

• Check whether another story has been set as next, which changes which story is treated as first.

• A name changed in the NRCS during a session takes effect only at the next session. Disable Story Recorder mode and enable it again.

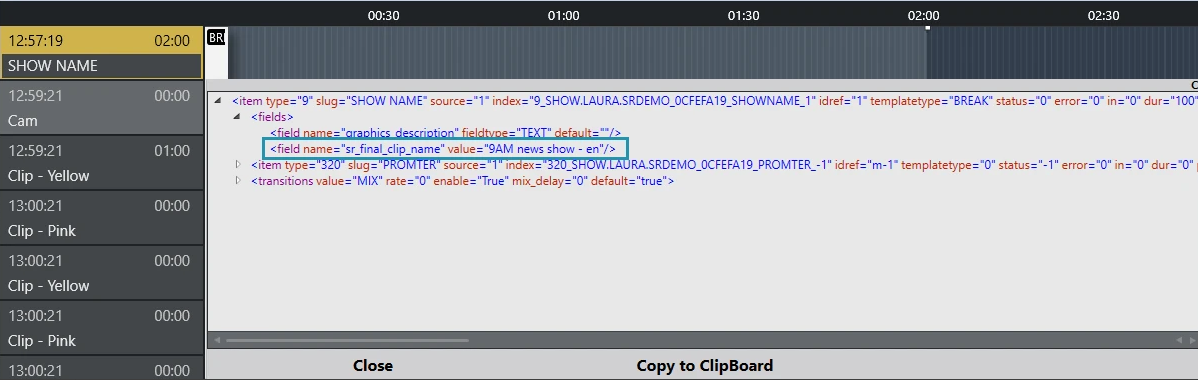

• To inspect what the NRCS actually sent, hold Ctrl+Shift+Alt and double click the first story item to view the MOS XML.

Housekeeping and Disk Space

• Intermediate recordings can be purged automatically using the recording clip name prefix together with the retention period. The task runs every time the Mosart Server Log Service starts or restarts. The service account needs read, write, and delete rights on the recorder port folders. A retention value of zero disables purging.

• EDL folders are not managed by Viz Mosart. Neither the local EDL folder nor the watch folder is cleaned up automatically, so both need an occasional manual purge by the local system administrator.

• The final show clip folder is controlled by the transcoder, not by Viz Mosart.

• All settings, such as pre-roll duration and file locations, are preserved between sessions.

Limitations

• A separate, dedicated template set is required for shows that use Story Recorder. These templates cannot be used when Viz Mosart runs in non-Story Recorder mode.

• You can only retake from the beginning of a primary story item. A single item cannot be replaced in isolation: everything from the retake point onward must be redone.

• The following story elements and secondary items give unpredictable results around the cut point and must be carefully reviewed: accessories, manual commands, running animated graphics, and state variant behavior.

• Because Viz Mosart runs in Frame Accurate mode rather than Standard mode during a Story Recorder show, not every feature from Standard mode is available. See the Show Design for Frame Accuracy and Story Recorder section for the full matrix.

• Reloading a rundown ends the session by default, publishing what has been recorded, and Story Recorder must then be enabled again. This behavior is controlled by the setting that disables Story Recorder on rundown reload. When that setting is switched off, the session moves to Paused instead and can be resumed.

• Reloading a rundown into rehearsal while recording pauses the recording, and no clips are produced.

Collecting Data for Vizrt Support

Timing problems cannot be diagnosed from a description alone. Collect the following before contacting Vizrt Support.

Files

Settings to report

Frame rate, video server type, whether genlock is enabled, the clock source in use, and the four calibration latency values from the AV Automation Genlock tab.

Questions to answer

• Which story and which template were on air when the problem occurred?

• What action triggered it?

• What was expected, and what happened instead?

• Is there a screenshot or a short video?

• Is it reproducible, and if so how often?
