This section describes how to set up and configure Story Recorder in Viz Mosart. All Story Recorder settings are managed through Viz Mosart Central Settings, which gives one place for every output workflow and its parameters.

Work through the Setup Checklist below. It is the spine of the setup: each step links to the section or page that describes it, and the notes call out the mistakes that have caused hard to diagnose problems in the field.

End user (Viz Mosart operator) documentation for Story Recorder is provided in Working with Story Recorder.

Overview

Story Recorder relies on several Viz Mosart server components working together:

  • Manus Administrator receives the rundown and story metadata needed for Story Recorder from the NRCS.

  • AV Automation controls the video server (clip playout and record start and stop), handles communication with external renderers and transcoders, and uses genlock synchronized timecodes to ensure frame accurate clip boundaries and EDL entries.

  • Mosart Logging Service (from the Mosart Server installation, not the UI) captures all on-air events with frame accurate timecodes. Story Recorder uses these events to build EDLs and determine clip in and out points.

  • Coder (optional) generates short snippet clips around retake cut points for review in the Mosart UI.

Story Recorder produces three kinds of output, each targeting a different production need. The diagrams below show the data flow for each. See Supported Configurations for the devices validated with each one.

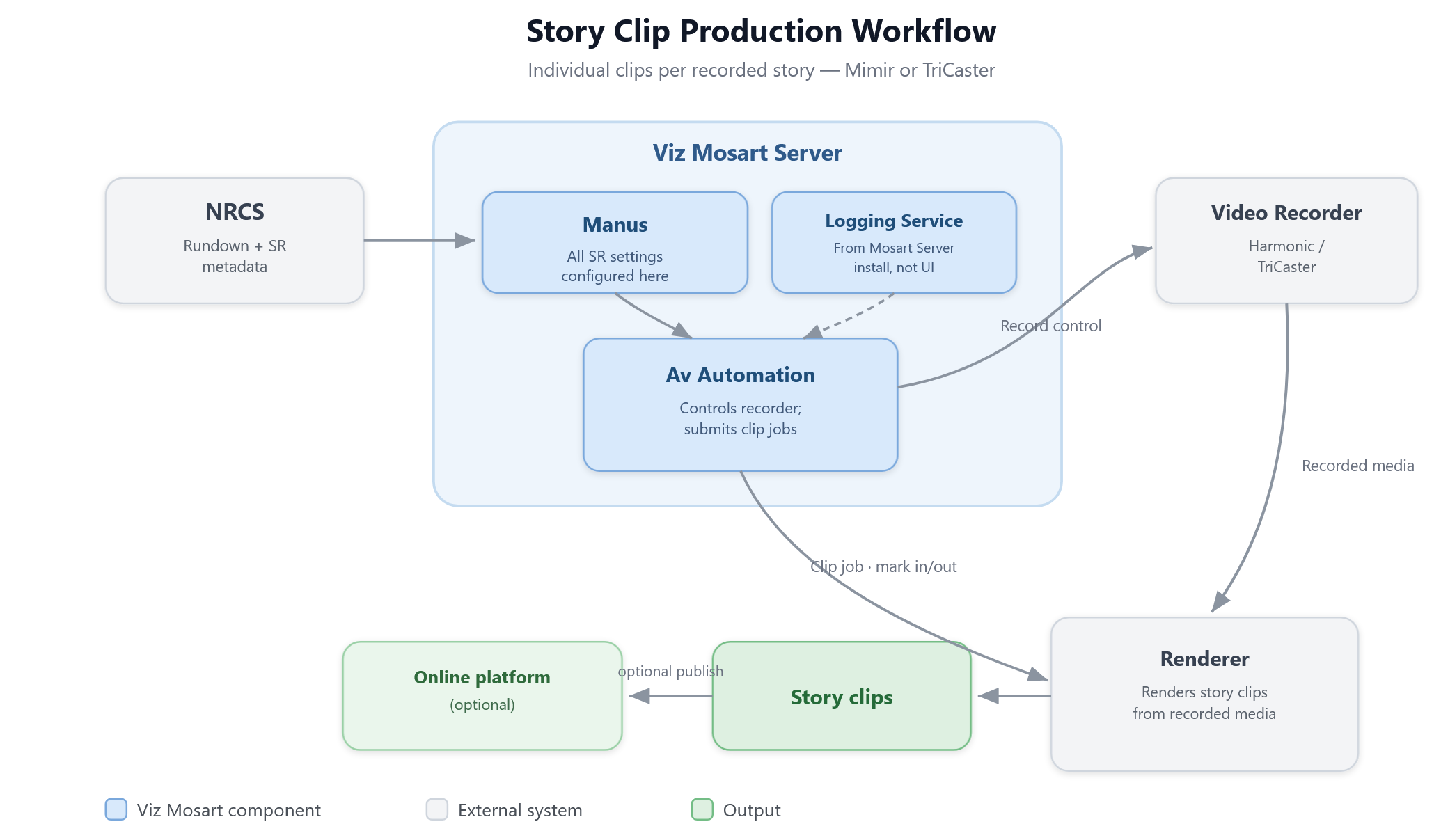

Story clip production and publishing

Stories marked for recording in the NRCS are individually recorded and published as clips, either during a live broadcast or in an offline session. See Story Clip Production Setup.

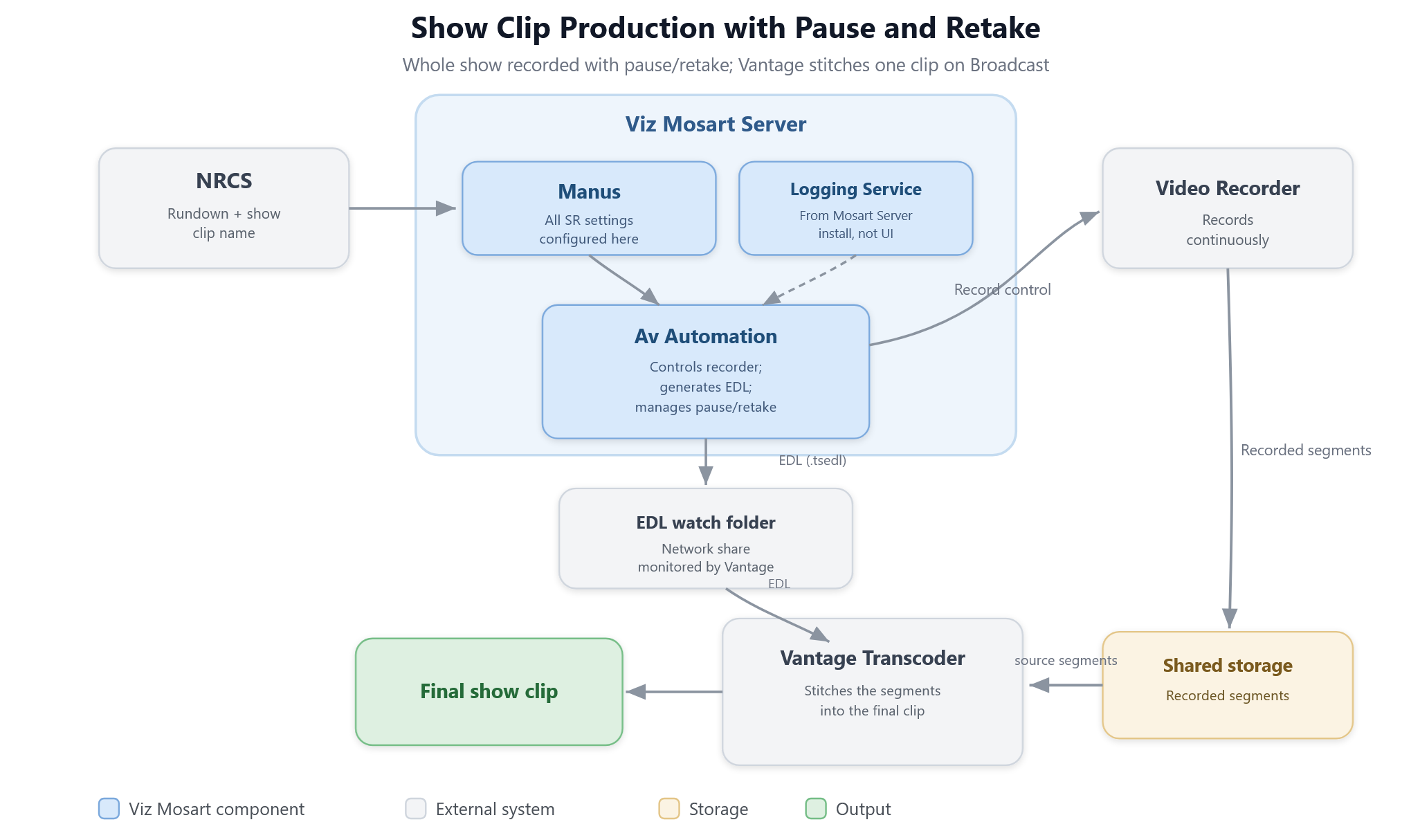

Show clip production with pause and retake

The entire show is recorded with the ability to pause, retake, and backtrack. At completion, an EDL is broadcast to a transcoder that stitches the recorded segments into a single final clip. See Show Clip Production Setup.

Mosart EDL generation

JSON format EDL files are generated locally, for post-processing, transcoding, or third-party integrations. Output level: Item, Story, or Show. See Mosart EDL Setup.

Supported Configurations

The table below lists the validated combinations of NRCS, recorder, and transcoder for each workflow. Story Recorder has been designed with a flexible output architecture, and new devices and integrations can be added as needs evolve.

Workflow

Output path

NRCS

Recorder

Transcoder/Renderer

Online publisher

Product versions

Story clip production and publishing

TriCaster export

Any*

TriCaster

TriCaster

TriCaster

Viz Mosart 5.14+
TriCaster Vizion 8.4+

Story clip production and publishing

Mimir

Any*

Harmonic Spectrum

Mimir

-

Viz Mosart 5.14+
Mimir latest
Saga latest

Show clip production with pause and retake

Network share (Vantage watch folder)

Any

TriCaster
Harmonic Spectrum

Vantage
Coder (optional, for snippet clip around cut point)

-

Viz Mosart 5.14+
TriCaster Vizion 8.4+
Viz Coder latest version

Mosart EDL

Local or network

Any

TriCaster
Harmonic Spectrum

-

-

Viz Mosart 5.14+
TriCaster Vizion 8.4+

*An NRCS that can provide the required story metadata fields via the MOS protocol.

  1. Saga offers built-in integration.

  2. Other NRCS systems (for example, iNEWS) can be configured using Newsroom Settings field mapping. See Viz Mosart User Guide sections Story Recorder Mode for the MOS integration details.

Setup Checklist

Story Recorder setup spans several pages and applications. Work through the steps below before the first production. The Applies to column tells you which steps your workflow needs.

1. Plan

#

Step

Applies to

Where

Notes

1

Order the Story Recorder operating license from Vizrt Support.

All workflows

-

2

Choose the output workflow: story clip, show clip, or Mosart EDL.

All workflows

Overview

The choice decides the recorder and the transcoder, so make it before you order or wire anything.

3

Check that your NRCS, recorder and transcoder are a validated combination, and that the product versions match.

All workflows

Supported Configurations

New devices and integrations can be added. Contact Vizrt if your combination is not listed.

4

Plan the show design. Find out which templates and features work in frame accurate mode and with Story Recorder before you build the template set.

All workflows

Show Design for Frame Accuracy and Story Recorder

Do this before you build anything. The design decides which features you can use, and reworking a finished template set is expensive.

2. Install

#

Step

Applies to

Where

Notes

5

Install in the right order. When the Viz Mosart UI, Audio Player and Server share a machine, install the Server last, and point the Mosart Logging Service at the Server installation folder.

All workflows

System Logging

The Story Recorder adapter runs inside the Logging Service, on the server side.

6

Confirm that Viz Mosart runs the show correctly in live (non Story Recorder) mode.

All workflows

-

Story Recorder adds to a working system. Chasing a Story Recorder problem that turns out to be a plain playout problem wastes the most time of anything on this list.

7

Install Viz Coder on both the main and the backup server, if operators review the cut after a retake. Only the Coder Worker is needed.

Show clip

Show Clip Production Setup

Optional. Without it, retakes still work, but no snippet is produced for review.

3. Make the system frame accurate

Story Recorder can be switched on and tried out without genlock, but only for testing. In production it needs frame accuracy, and the steps below are what deliver it.

#

Step

Applies to

Where

Notes

8

Provide a clock source on the main and the backup server: a Plura timecode reader card, or PTP.

All workflows

Frame Accurate System Operations, PTP Setup

Both sources give the same frame accurate behavior. A Plura card needs a free slot in each machine; PTP needs a grandmaster on the network.

9

Switch on Genlock mode in Viz Mosart Central Settings > AV Automation > Genlock, and lock every device in the video chain. The Viz Mosart UI must show no genlock warning when Story Recorder is switched on.

All workflows

Frame Accurate System Operations

Without genlock, Viz Mosart falls back to its internal clock. That clock drifts, so clip boundaries degrade over the length of the show.

10

Confirm that the timecode reader delivers timecodes, not only frame lock. Switch on Statistics on in Viz Mosart Central Settings > AV Automation > Genlock, and check the analysis report and that IsTcSyncedWithExternal = True in the summary file.

All workflows

Frame Accurate System Operations

A system can be frame locked while the timecodes still come from the PC clock. Everything looks healthy, but every mark is offset by a constant amount. This is the most common field problem.

11

Set one time convention across every device that stamps timecodes. Use local time (Manus Settings > General) must match the master clock that feeds the video server, and External clock is local time (Viz Mosart Central Settings > AV Automation > Genlock) must describe the incoming signal.

Set Frame rate (Manus Settings > General) to the rate the facility runs at.

All workflows

Frame Accurate System Operations, Related General Setting

A convention mix inside the timecode chain cannot be compensated. It is easy to recognize: every mark is wrong by the same amount, and that amount equals the difference between local time and UTC (5 hours when the local time zone is US Eastern, for example). Devices that do not stamp timecodes into recordings or EDLs can keep their own clocks. Local time also jumps with daylight saving, which is why many facilities run the house clock on UTC.

12

Calibrate the controlled devices and enter the latencies in Viz Mosart Central Settings > AV Automation > Genlock > Calibration. Each latency accepts a value from 0 to 100.

All workflows

Device Calibration

Clicking Apply in AV Automation sends genlock and latency changes to Story Recorder immediately, so both always work with the same values.

13

Build the dedicated Story Recorder template set and test it in frame accurate mode.

All workflows

Show Design for Frame Accuracy and Story Recorder

Templates behave differently in frame accurate mode, where primary events are latency compensated, and not every feature from Standard mode is available. Do not reuse the live template set unchecked.

4. Configure the video server

#

Step

Applies to

Where

Notes

14

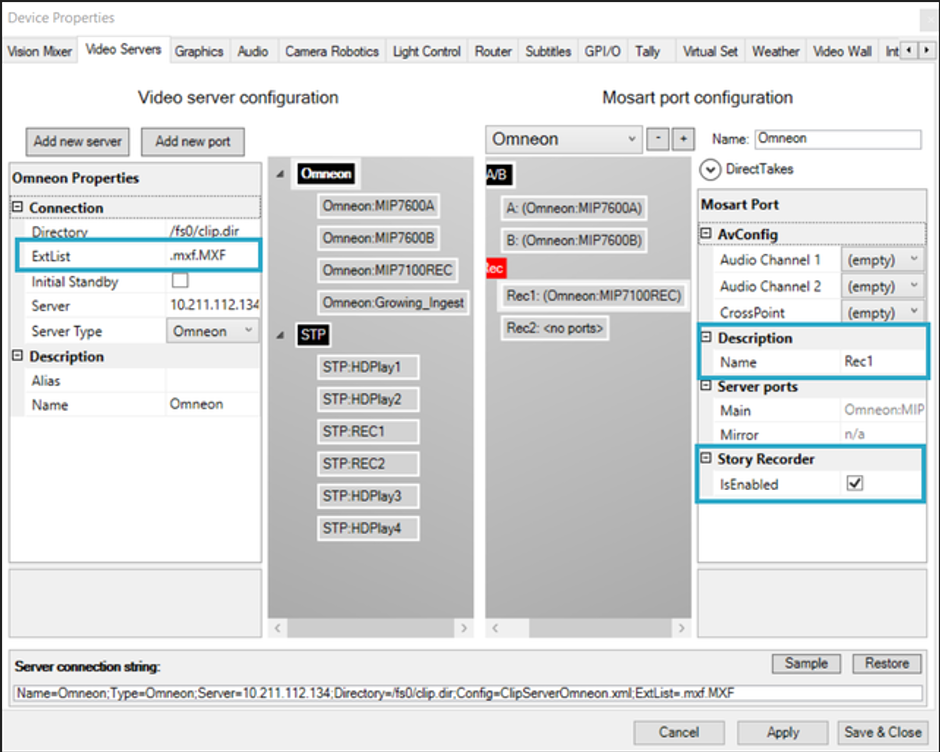

Configure the recording ports. Select IsEnabled in the Story Recorder section, set the file extension to match the server output (mov for TriCaster, mxf for Harmonic Spectrum), then reload the ports with Ctrl+Shift+V.

All workflows

Configuring the Video Server

Recordings are prepared on the record port of the current salvo. A running recording keeps the port it started on; a salvo change takes effect from the next recording.

15

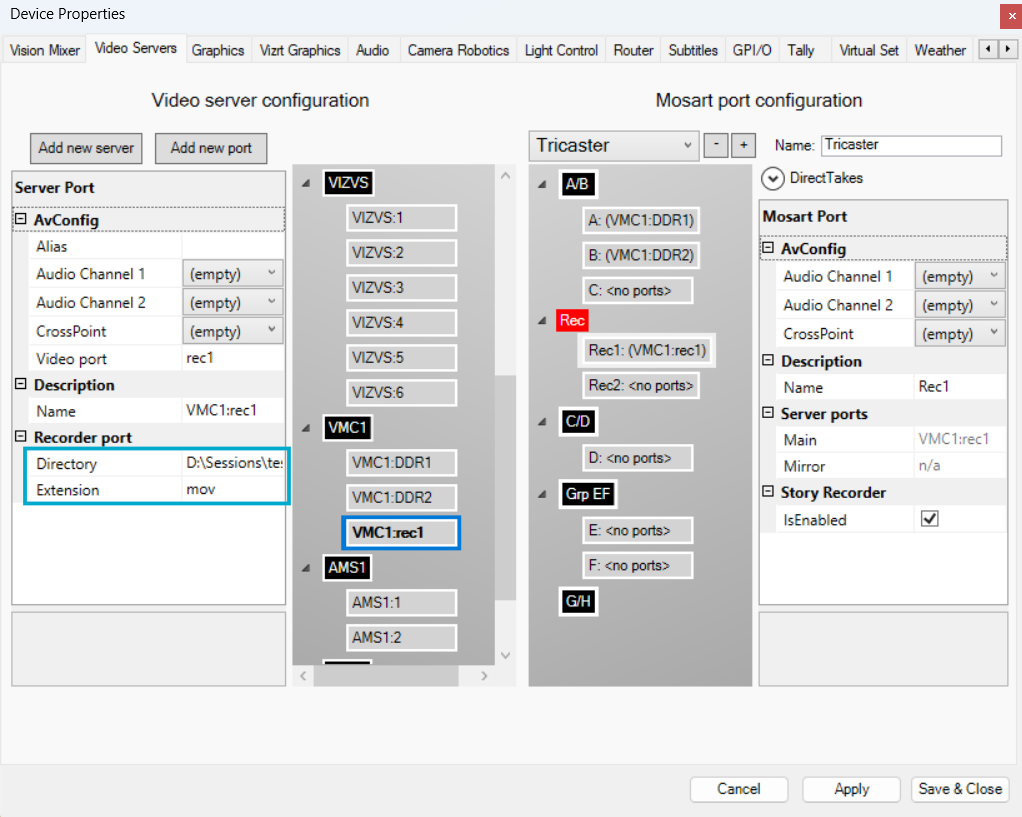

Set the playout and recording directories. Show clip production needs the recording directory to be the same as the playout directory, because the preroll template plays back from the recording.

All workflows

Media resource types

Story clips are usually needed for playout, so they belong in a folder that Viz Mosart discovers clips in. Snippet clips do not.

16

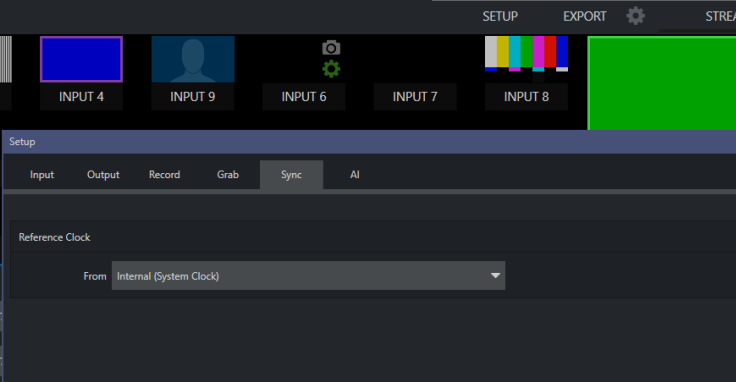

Prepare TriCaster: match its session frame rate to Viz Mosart, set its reference clock and its timecode source, and enable LTC.

TriCaster as recorder

Preparing TriCaster

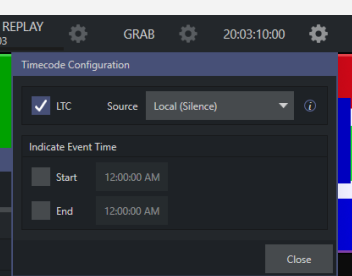

Without LTC, TriCaster stamps the recording from the NDI recorder in UTC, and the export job has no reliable reference for the cut.

17

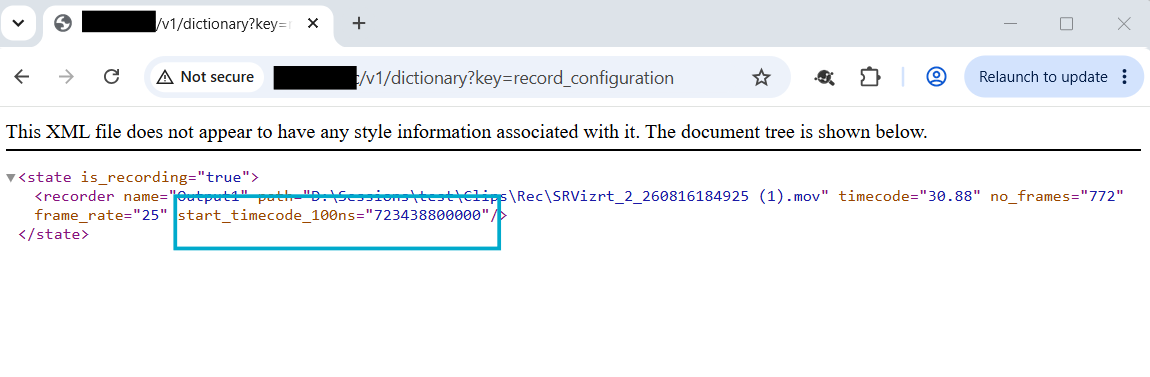

Verify the video server timecodes once during commissioning. Record about 30 seconds, then compare the first frame timecode of the recording file with the timecodes in the Mosart log. With Story Recorder enabled, no Time sync issue warning appears.

All workflows

Configuring the Video Server, Story Recorder Troubleshooting

Some video server models and firmware report a Start of Media that is offset from the actual recording. A constant offset here moves every produced clip by the same amount. The tolerance before the warning fires is 0.5 seconds on a synchronized external clock, and 1 second otherwise.

5. Configure Story Recorder

#

Step

Applies to

Where

Notes

18

Set Enable Story Recorder in Manus Settings.

All workflows

Settings (Manus) Configuration

The remaining Story Recorder settings sections become available only after this.

19

Configure the output for your workflow, with its mandatory folders and presets. Enabling Story Recorder must raise no configuration warnings.

All workflows

Story Clip Production Setup, Show Clip Production Setup, Mosart EDL Setup

With no output configured, recordings are made and nothing is published.

20

Grant the Mosart Logging Service account read, write and delete permission on the recording folders, and read and write on every EDL and snippet folder. Verify with that account, not with an administrator login.

All workflows

Recordings Housekeeping and the workflow pages

An unreachable folder can block the whole enable action, and cleanup failures are reported only in the log.

21

Set the Recording clip name prefix and the Recording retention days.

All workflows

Recordings Housekeeping

Recordings are large files. Retention is 0 by default, which disables cleanup, so the disk fills unless you set a value or clean up by other means.

22

Configure the NRCS story metadata, so that stories marked for recording appear in the Story Recorder panel and the clip IDs sent by the NRCS resolve in the target system.

Story clip

Story Clip Production Setup

A story without valid metadata is tracked but never published. A stale clip ID fails the publish on every retry.

23

Set Disable Story Recorder on rundown reload deliberately, and brief the operators on what it does.

All workflows

Other Settings

With the default, a rundown reload ends the session and publishes the recording.

24

Assign the Story Recorder keyboard shortcuts.

All workflows

Keyboard Shortcuts

Show clip production needs a Pause Timeline shortcut before retakes can be used at all.

25

Save the settings while Story Recorder is off, and confirm that only one Mosart Logging Service instance is running.

All workflows

What takes effect when

A second service instance started from the same folder refuses to start.

6. Verify

#

Step

Applies to

Where

Notes

26

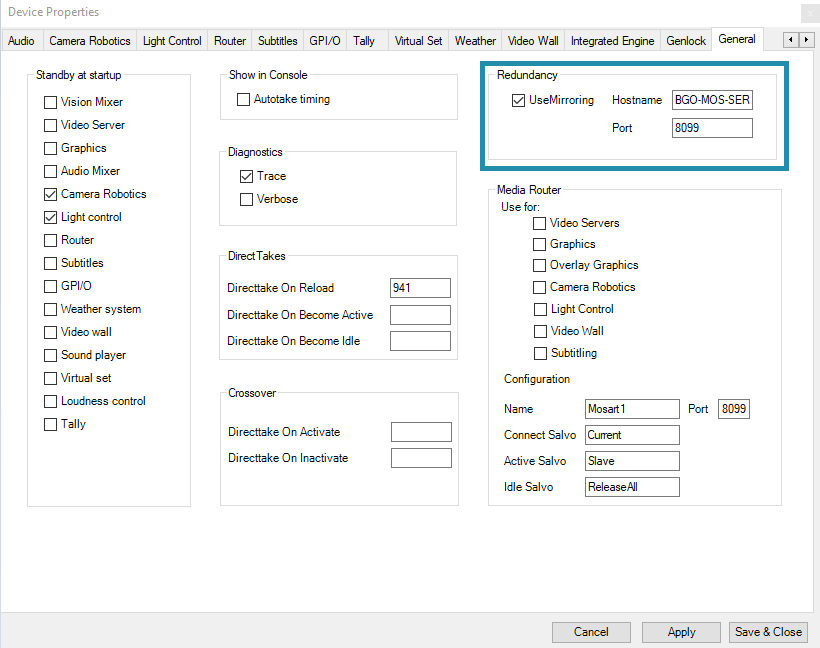

Configure Story Recorder identically on main and backup, set Backup host, Backup port and Listener port, and test one failover off air.

All workflows

Failover

Optional, and only for systems already set up with redundancy. An unreachable backup is reported only in the log; the session then runs unmirrored.

27

Run a complete off-air session: enable Story Recorder, record several stories, pause and retake if the workflow uses them, publish, and verify the output.

All workflows

Verification on Story Clip, Show Clip, Mosart EDL

Acceptance on the Mosart side is not proof. Confirm that the produced clip or EDL exists and has the expected content and duration.

Configure Story Recorder

Story Recorder output workflows and their parameters are configured through Viz Mosart Central Settings.

Save Story Recorder settings while Story Recorder is off. See What takes effect when for when a change is applied and what to restart.

What takes effect when

A small set of Story Recorder settings is read once, when the Mosart Logging Service starts. The rest are read when a session is enabled, so a save takes effect at the next enable and nothing needs restarting. Settings that live in AV Automation follow AV Automation's own rules.

You change

When it takes effect

What to restart

Enable Story Recorder, Clip Outputs (TriCaster, Mimir), the Mosart EDL output, and the dispatcher, backup and listener host and port settings

When the service starts

Mosart Logging Service, on the Mosart Server machine

Every other Story Recorder setting, including the whole Vantage EDL output, retakes, snippets, preroll, the clip name prefix and the retention days

At the next time Story Recorder is enabled

Nothing. Save while Story Recorder is off; a save during an active session is dropped and the service logs a warning.

Recording clip name prefix, Recording retention days

The housekeeping job runs at each service start, then at intervals

Nothing, unless you want the cleanup to run now, which needs the Mosart Logging Service

Use local time (Manus Settings > General)

Story Recorder picks it up at the next enable. AV Automation captures it once at startup.

AV Automation

Frame rate (Manus Settings > General)

Manus Administrator and the Viz Mosart UI apply it live. AV Automation caches it at startup.

AV Automation

Video server recorder ports, file extension, directories

On reconnect to the video server

Ctrl+Shift+V in AV Automation, or restart AV Automation

Genlock mode, Clock Source, calibration latencies (Viz Mosart Central Settings > AV Automation > Genlock)

On Save, and the values reach Story Recorder immediately

Nothing

Plura card properties (Viz Mosart Central Settings > AV Automation > Genlock)

On Save

Nothing

GenLogRepositoryConfig.xml

Read once at service start

Mosart Logging Service

Newsroom Settings Story External Metadata mapping

After a restart

Viz Mosart Server

In Windows Services the service is registered as MosartLogService and displayed as Mosart Logging Service.

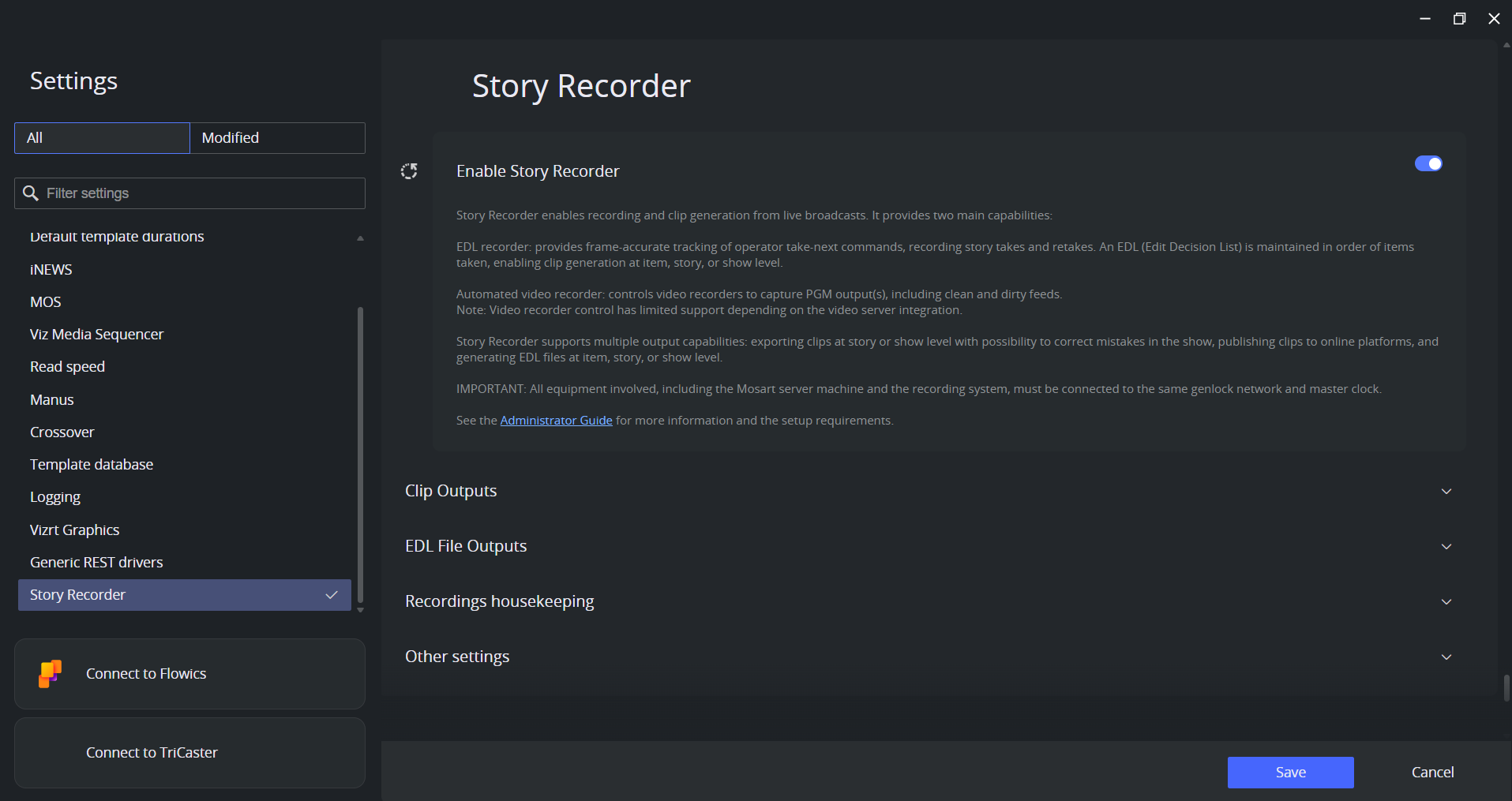

Enable Story Recorder

Setting

Default

Description

Enable Story Recorder

false

Enables the Story Recorder feature. When enabled, the remaining Story Recorder settings sections become available.

Clip Outputs

Configure clip output device types. Story clips are produced by the listed devices as configured here. The settings are specific to the output, and are described on the workflow pages:

Recordings Housekeeping

Automatic cleanup of temporary Story Recorder recording files on the video server.

Setting

Default

Description

Recording clip name prefix

SRVizrt

Prefix added to each intermediate recording clip that Story Recorder creates on the video server.

Serves two purposes:
- Identifies SR-generated recordings.

- Acts as a filter for the housekeeping cleanup job.

The clean-up job accesses the recording folders (configured per recorder port in AV Automation) as network shares. The Mosart Logging Service account must have read, write, and delete permissions on these folders.

Recording retention days

0 days

Retention period for the automatic housekeeping task. Recordings matching the clip name prefix are deleted after the specified number of days. Set to 0 to disable housekeeping (default). The recording folders are automatically collected from the recorder port configurations in AV Automation.

If defined, the housekeeping task is run every time Mosart Logging Service is (re)started and keeps running at regular intervals following this setting.

Recorded clips can be very large files, easily filling the disk space.

Other Settings

Setting

Default

Description

Remote dispatcher host

localhost

Host address for connecting to the Mosart Remote Dispatcher Service (MosartRemoteControlService). This service dispatches commands between the Story Recorder Adapter and the Mosart server.
The Mosart Remote Dispatcher service is always local, running on the Mosart server machine. No other value should be given.

Remote dispatcher port

8090

Port for connecting to the Mosart Remote Dispatcher Service.

Backup host

(empty)

Host address of the backup Story Recorder Adapter for failover. Leave empty for single-adapter mode (no failover). When configured, the primary adapter forwards its state to the backup, which can take over if the primary fails.

Backup port

5001

Port of any backup Story Recorder Adapter.

Listener port

5001

Port the Story Recorder Adapter listens on for incoming state from a primary adapter. Used in a primary/backup failover pair.

Disable Story Recorder on rundown reload

true

Controls what happens when the NRCS rundown is reloaded during an active recording.

  • Enabled (default): SR mode is fully disabled, recordings stop and pending items are published.

  • Disabled: The timeline is only paused; SR mode stays active and can resume when the timeline starts again with the new rundown.

Related General Setting

The Use local time setting in the General section of Manus Settings applies to all Story Recorder timecodes:

Setting

Default

Description

Use local time

false

Chooses the time convention Viz Mosart uses for its own timecodes: local time when enabled, UTC when disabled.

Set it to match the time reference of the master clock that feeds the video server. Story Recorder computes each mark as the event timecode minus the Start of Media reported by the video server, and that Start of Media is used exactly as delivered, so both values have to be in the same convention. A mismatch offsets every mark by the difference between local time and UTC. Calibration cannot absorb it, and with Story Recorder enabled Viz Mosart logs a warning that the video server time differs from the Mosart time.

The setting covers every Story Recorder output: the Vantage and Mosart EDL files, and the render and export commands sent to Mimir and TriCaster.

It is independent of the AV Automation setting External Clock Is Local Time, which describes whether the incoming timecode signal carries local time or UTC. When the two differ, Viz Mosart converts the incoming timecode to its own convention, so its own clock works with any combination.

Mosart logs, UI, and Timing Display are not affected.
Read more in section Frame Accurate System Operations.

Configuring the Video Server

The video server is used for playout of clips both during the show, and when recording. The setup involves configuring playout ports, recorder ports, and ensuring the correct directory and file extension settings for the various types of media resources involved.

Media resource types

Story Recorder operations involve various types of media resources. Understanding these is important for correct directory and port configuration:

  • Playout clips: The rundown clips monitored by Media Administrator, cued and played out by AV Automation. They must reside in a directory that the video server accepts for playout.

  • Recordings: Clips produced when recording the video server output (typically the PGM output). In the story clip production workflow, these are the raw continuous recordings from which story clips are cut. These clips are not needed for playout unless the show clip production workflow is used, where the preroll template is played back from a recording clip. In this case, the recording directory must be the same as the playout directory.

  • Story clips: Segments cut from the growing recordings, using an export job. Story clips are typically needed for playout, so they should reside in a folder that Viz Mosart discovers clips in.

  • Snippet clips: Short review clips generated around retake cut points in the show clip production workflow. These are browsed in the Story Recorder floating window in the Viz Mosart UI, and used purely as visual verification of cut quality. They do not need to be available for playout.

To configure video server recorder ports

  1. In AV Automation, navigate to Devices > Properties > Video Servers.

  2. The Video server configuration and Mosart port configuration should already be working for your system. Otherwise, refer to the Video Servers documentation.

  3. Configure the recording port(s) dedicated for Story Recorder.

  4. For the recording port(s), select IsEnabled in the Story Recorder section. This reserves the port for Story Recorder.

For TriCaster, the Quick Connect feature in Manus Settings can be used to automatically configure the video server setup and automatically enable the recorder for Story Recorder.

  1. Set the recording file extension to match the format produced by the video server (for example, mov for TriCaster, mxf for Harmonic Spectrum).
    Story Recorder uses this extension to build the correct file path when referencing the recording clip in EDLs and render jobs. The extension is resolved with the following priority:

    1. Extension field on the recording port (per-port setting).

    2. Ext property in the Server connection string.

    3. ExtList property in the Server connection string (the first entry is used).

    4. If none of the above are set, the default is mxf.

  1. By default, Mosart supports separate directories for playout clips and recordings (see screenshot above). However, for the show clip production workflow, the recording directory must be the same as the playout directory, because the preroll template is played back from the recording clip.

  2. Click Apply then Save & Close.

  3. Force a reconnect to the video server with Ctrl+Shift+V (or restart AV Automation).

Preparing TriCaster

These steps apply whenever TriCaster acts as the recorder, in both the story clip and the show clip workflow. TriCaster stamps the recording with its own timecode, and Story Recorder cuts against that timecode, so TriCaster has to carry the same time as the rest of the system.

Two separate settings decide that, and they belong to different parts of TriCaster: the reference clock is what TriCaster locks its video to, and the timecode source is what it stamps the recording with. Set both. The menu paths below are from TriCaster Vizion; other TriCaster models arrange the same settings differently, so check the user guide for your model.

  1. Set the TriCaster session to the same frame rate as Viz Mosart. The Story Recorder adapter calculates timecodes from the frame rate configured in Manus.

  2. Set the reference clock. Open Setup > Sync and set Reference Clock > From to the house reference that the rest of the video chain is locked to. The default, Internal (System Clock), means TriCaster free-runs on its own clock. Leave it on Internal only on a system that does not run frame accurate.

  1. Set the timecode. Open Timecode Configuration and select LTC. For Source, select the house LTC input when the facility feeds one, or Local (Silence) when it does not. Local (Silence) makes TriCaster generate timecode from its own system clock rather than from an incoming signal.

  1. When you use Local (Silence), synchronize the TriCaster and the Viz Mosart server clocks over NTP, and keep them within 1 second of each other. Story Recorder then works from time of day, and the two machines have to agree.

  2. Configure TriCaster to record the program output (Record Mix 1) to a folder that Viz Mosart can discover clips in, as described below.

The two settings move together:

The facility has

Reference Clock (Setup > Sync)

Timecode source

House genlock and house LTC

The house reference

The LTC input

Neither

Internal (System Clock)

Local (Silence), with both machines on NTP

Enable LTC in both cases, including on a system that does not run frame accurate. Without it, the start timecode of a recording comes from the NDI recorder and is UTC by default, which puts a whole-hour offset on every mark when Viz Mosart is configured for local time.

TriCaster can stop reporting Start of Media while it otherwise looks healthy: export jobs then fail or cut at the wrong point, and the Mosart log shows no Start of Media for the recording. Restart TriCaster, start the recording from TriCaster and verify this sends the start of media correctly http://tricaster-server/v1/dictionary?key=record_configuration.

For the reference and timecode connectors on your model, and the options in the Reference Clock list, see the TriCaster Vizion User Guide.

How Viz Mosart finds clips on TriCaster

Story clips are cut from the recording and are usually needed for playout, so the recording output folder has to suit the way Viz Mosart discovers clips. There are two routes, and only one of them is needed:

Route

Set up by

What the recording folder must be

TriCaster API

TriCaster Quick Connect, which writes the Media Administrator server connection and its HTTP credentials.

A folder TriCaster lists in its own file browser. Media Administrator queries TriCaster directly and polls the file browser for changes.

Media Service

Manual configuration of a Media Service publishing point in Media Administrator.

The folder that Media Service monitors. Using one folder for playout clips, recordings and story clips is the simplest arrangement.

TriCaster server connection string properties

Set these in the Server connection string in AV Automation > Devices > Properties > Video Servers.

Property

Default

Description

HttpUsername

admin

HTTP username for the TriCaster REST API. Used by all workflows. Mosart needs it to request Start of Media (the timecode of the first frame) for the render job command. Can be added via the TriCaster Quick Connect editor.

HttpPassword

(empty)

HTTP password for the TriCaster REST API, used together with HttpUsername. Can be added via the TriCaster Quick Connect editor.

AddExportJobDelayMs

5000

Delay in milliseconds before sending the export job request to TriCaster. Used by story clip production only. When a story ends, Mosart sends an export job to TriCaster to cut the story clip from the ongoing recording. If the export request is sent too soon (within 1 to 2 seconds of the cut point), TriCaster may not be ready to process it because the recording file is still growing. This delay gives TriCaster time to finalize the recording segment before the export is triggered.

Example: ...;HttpUsername=admin;HttpPassword=admin;AddExportJobDelayMs=5000

Clip naming pattern of temporary recordings

The temporary recording files generated by Viz Mosart are automatically named.

Single recorder:
<prefix>_<counter>_<timestamp>.<ext>

Multiple recorders:
<prefix>_<recorder name>_<counter>_<timestamp>.<ext>

Where:

  • prefix: The Recording clip name prefix configured in Manus Settings (default: SRVizrt). This prefix is also used by the housekeeping job to identify SR-generated recordings.

  • counter: A sequence number, reset to 1 for each Story Recorder session.

  • timestamp: An automatically generated (format YYMMDDHHmmss).

  • ext: The file extension configured in AV Automation > Devices > Properties > Video Servers > ExtList (the first in the list is used).

  • recorder name: The Name setting on the virtual recorder port in AV Automation (for example, Rec1). Only included when multiple recorders are configured.

Example: A single recorder, prefix SRVizrt

File

SRVizrt_1_211001153956.mxf

SRVizrt_2_211001153956.mxf

SRVizrt_3_211001153956.mxf

Example: Two recorders (Rec1, Rec2), prefix SRVizrt

File

SRVizrt_Rec1_1_211014172330.mxf

SRVizrt_Rec1_2_211014172330.mxf

SRVizrt_Rec1_3_211014172330.mxf

SRVizrt_Rec2_1_211014172521.mxf

SRVizrt_Rec2_2_211014172521.mxf

SRVizrt_Rec2_3_211014172521.mxf

Keyboard Shortcuts

Control commands

Several Story Recorder actions are available for keyboard assignment. They are configured as Control Command shortcuts with the command STORY_RECORDER and an Action parameter:

Action

Applies to

Description

TOGGLE

All workflows

Toggles Story Recorder mode on or off.

ENABLE

All workflows

Enables Story Recorder mode.

DISABLE

All workflows

Disables Story Recorder mode and publishes the recorded clip(s).

DISABLE_NO_PUBLISH

All workflows

Disables Story Recorder mode and discards the session. Recording stops and nothing is published. This is the counterpart of DISABLE, which publishes.

PAUSE

Show clip

Pauses the timeline while in Story Recorder mode.

RETAKE

Show clip

Sets a retake point at the selected position.

BROADCAST_TIMELINE

Show clip

Delivers the show recorded so far to the configured outputs, the same as the Deliver button in the Story Recorder tool window (only available while paused).

REDO

All workflows

Starts the show again from the story that is on air. Story Recorder is disabled without publishing, the rundown is reloaded, and the story that was on air is set as the first story after the reload. Mainly used in show clip production.

Refer to the Viz Mosart User Guide, section Viz Mosart User Interface > Keyboard Shortcuts > Control Command Keys.

Pause Timeline shortcut

In addition to the control command actions, a dedicated Pause Timeline shortcut is available:

Shortcut name

Command

Applies to

Description

Pause Timeline

pause_timeline

Show clip

Pauses or resumes the Mosart timeline when in Story Recorder mode.

Failover

This step is optional and requires that Viz Mosart is already set up with redundancy as described in section Redundancy.
This means that:

  • Both the Viz Mosart main and backup server have same configurations for at least Mosart Administrator, AV Automation, Media Administrator and Overlay Graphics Interface.

  • AV Automation is configured for mirroring on both main and backup servers (with main pointing to backup and backup pointing to main):

  • The Viz Mosart UI is configured to connect to the backup server:

For Story Recorder, there are additional steps:

  • Story Recorder is configured on both main and backup in the same way in Manus Settings.

  • Backup host and port: Configure the Backup host and Backup port settings in Manus Settings (under Other Settings) on the primary adapter, and the Listener port on the backup adapter.

  • Snippet clips folder (optional): If snippet generation around the cut point has been set up for main, set it up in the same way for backup. Install Viz Coder on both main and backup server. The snippet folder configured in the Settings menu must point to the same shared location on both main and backup, so that the Viz Mosart UI has access to snippet files regardless of which system is active.

  • Genlock calibration: The same calibration settings from Viz Mosart Central Settings > AV Automation > Genlock must be configured on both main and backup to ensure frame-accurate timecodes are consistent across failover (see Frame Accurate System Operations).

Troubleshooting

If Story Recorder does not behave as described, see Story Recorder Troubleshooting.
