A Mosart control command can be triggered from a template, executed when the template is Taken, at Continue points or when the template is Taken out.

Working with Control Commands
Command Values and Parameters
- Parameters with Placeholders

A DirectTake template is a special Mosart template designed for immediate execution, and is not normally part of a rundown.
A Mosart template can trigger multiple control commands.
A (not-templated) control command can trigger a Mosart template, often used for a DirectTake template.

Working with Control Commands

Controlling Video Servers

This is done via the Control Command page within the Template properties.
images/download/attachments/68863157/controVS.png

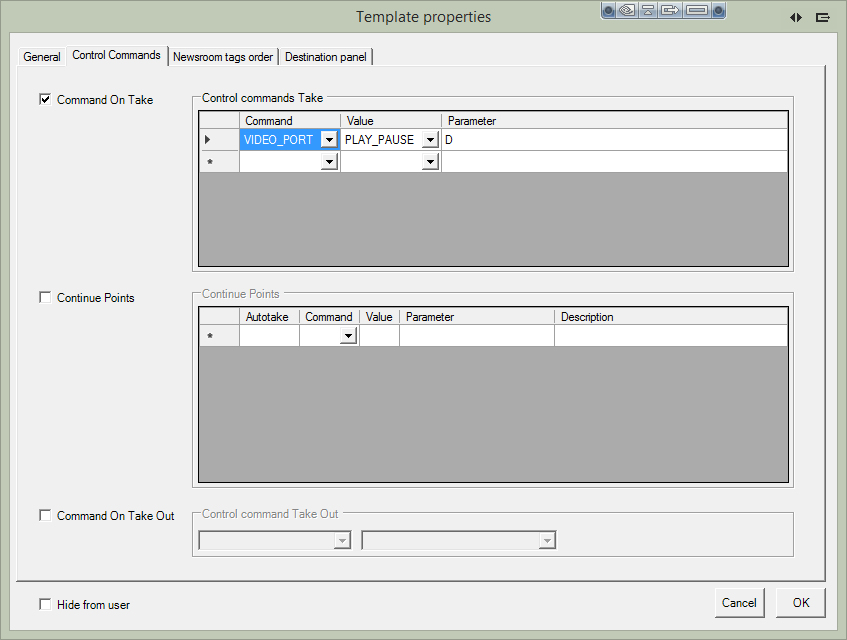

The figure above shows a single control command to be executed when the template is taken. Multiple control commands can be assigned here.

It is also possible to assign control commands to be executed at continue points and when the template is taken out.

The latter has limitation since the Parameter attribute is not available. In this context it may be useful to trigger a DirectTake at this place.

Adding a Control Command

To Add a Control Command

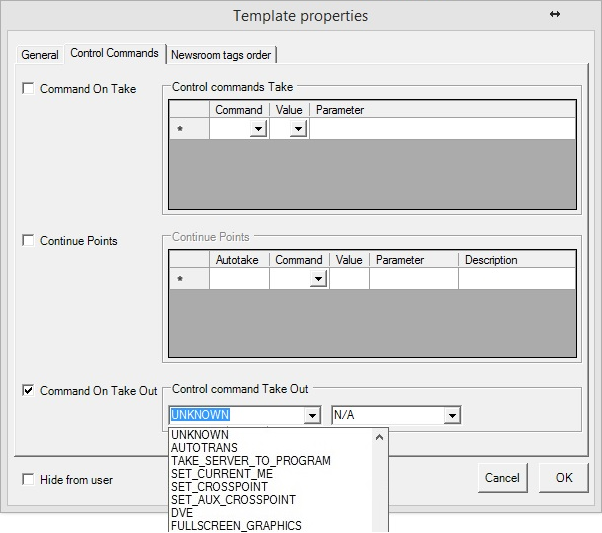

Click the Control Commands tab in the Template properties window.
The three categories of control command are Command On Take, Continue Points and Command on Take Out.
Refer to the table Command Values and Parameters for command details.

images/download/attachments/68863157/templates_template-properties.png

Command On Take

When selected, the commands inserted in Control commands Take are executed when the template is taken to Program or On Air.

By setting a Newsroom tag as a parameter in the OnTake-commands, the user can set the parameter from the NCS. When the user is using the ActiveX to add a template to the rundown, a text box is visible, requesting this value.

Continue Points

When selected, the commands inserted in Continue Points will be taken when pressing TAKE NEXT (default: F12). Viz Mosart executes this continue point from within the primary template in which it is inserted. Each line represents a new Continue Point.

Cue Next Item Index: Enter the line number (for example, 0, 1, 2, 3) of the continue point that executes a cue for the next/following Primary object. If empty, Viz Mosart cues when entering the last continue point in the list.
Autotake: Insert the autotake time, in frames. The control command continue-point is then automatically taken after that time.

Command on Take Out

The commands inserted here are executed when the template is taken from the program, taken Off Air, or at the end of the template. Only a single command can be used in Command On Take Out, and it does accept any parameters.

Command Values and Parameters

Note: Parameters marked with (*) do not work for templates.

Note: It is not possible to enter a Parameter in the Control command Take Out section.

COMMAND

Value

Parameter

Description

UNKNOWN

N/A

Default fallback. Does nothing.

AUTOTRANS

PP, ME1, ME2, ME3, ME4

MixEffect (MIX OR WIPE) + Transitionrate

For example: MIX 33, WIPE 10.

Note: The Effect cannot be used.

AUX,

Default

(*)

TAKE_SERVER_TO_PROGRAM

N/A

transRate (integer) - parameter.

(*)

Takes a video server port to program on a selected ME. For example: a video clip is running on a video wall.
The shortcut can then be used to take the last used/active video server to program.

SET_CURRENT_ME

PP, ME1, ME2, ME3, ME4

AUX

Default

(*)

SET_CROSSPOINT

N/A

(*)

SET_AUX_CROSSPOINT

N/A

(*)

DVE

FORWARD

REVERSE

Recall forward/revers emem

n/a

FULLSCREEN_GRAPHICS

CONTINUE_FULLSCREEN

AUTO

Continue Command Only: The AUTO parameter will replace the continue command with the number of continue points in the graphics item.
The number of continue points is taken from the graphics_continuecount field.

Examples:
AUTO+1: The number of continue counts from the graphics + 1
AUTO-2: The number of continue counts from the graphics - 2

FULLSCREEN_GRAPHICS

CONTINUE_FULLSCREEN

Engine no

The target output fullscreen engine number to execute the action on. (e.g. 1,2,3 )

MACRO

Engine no : macro

The target output fullscreen engine number to execute the action on. (e.g. 1,2,3 ) and Macro name.

The engine number must be same as the number defined in AV Automation

OVERLAY_GRAPHICS

CLEAR

Destination or Render (Engine no.)

Destination or Render (Engine no.) to clear the graphics from.

Numerical value: Render (Engine no.)

Non-numerical value: Destination.

CONTINUE

Engine no

TAKE_MANUAL_OUT

Destination or Empty

Destination to take out the graphics from.

Non-numerical value: Destination

Empty or Numerical value: Takes out all the graphics

MACRO

Engine no : macro

For example: 4:macrohere

PRETAKE_NEXT_OVERLAY

Render (engine no)

TAKE_NEXT_OVERLAY,

TAKE_NAMED_OVERLAY

(*)

OVERLAY_TO_MANUAL

Parameter 1: ONAIR (default), PREVIEW.

Parameter 2: Comma-separated list of handler names

Parameter 3: AUTOMATIC (default) / MANUAL

Parameter 2 and Parameter 3 must be separated by a semicolon. (E.g. WALL,DSK;MANUAL.)

For more details, see Control Command Key OVERLAY_TO_MANUAL )

Note: If there is no semicolon after Parameter 2; nothing to the right of the semicolon; or Parameter 3 has any value other than 'MANUAL', then Parameter 3 gets the default value ‘AUTOMATIC’.

WEATHER

N/A

(*)

AUDIO

FADE_MANUAL

Toggle fade manual

FADE_OUT_KEEPS,

FADE_DOWN SECONDARY_AUDIO,

FADE_UP SECONDARY_AUDIO

Fader rate

SET_LEVEL_2_ONAIR,

SET_LEVEL_2_PREVIEW,

FREEZE_AUDIO

-

DIRECTTAKE

#

-

Uses the value selected in the drop-down

LIGHT

N/A

(*)

AUTOTAKE

N/A

(*)

PLAY_STORY

N/A

(*)

STUDIOSETTUP

#

-

VIDEOWALLMODE

N/A

(*)

GRAPHICSPROFILE

N/A

-

SEQUENCE

LOOP

-

Sets a running sequence to start looping

STOP_LOOP

-

Stops running a looped sequence in loop

STOP

-

Stops a running sequence

START

-

Restarts a previously stopped sequence

MARKER

N/A

(*)

VIDEO_SERVER_GOTO

N/A

(*)

TRANSITION_TYPE

CUT,

MIX

Rate

EFFECT

Effect no

TOGGLE

(*)

RECORD

PREPARE,

START,

STOP

Split parameters using,

- first: clipname,

- second: recorder (optional),

- third: port name (default Rec),

- fourth: group name (default Rec)

For example: clip33,recorder1,Rec,Rec

DEVICE_PROPERTY

CAMERA CONTROL

See next column.

Note: This is for camera robotics.

The 'DEVICE_PROPERTY' control command with value 'CAMERA CONTROL' is only used as a way to set speed (Camerobot) and presenter (Camerobot/FxMotion) from a template.

Details for Camerobot Presenter:

ANCHOR=pos1:presenter1[,pos2:presenter2]…

The position and presenter is given as a pair divided by ‘:’.

Multiple position-presenter pairs are possible, separated by ‘,’.

Examples:

Parameter	Meaning
ANCHOR=2:David	position1: 2, presenter1: David
ANCHOR=2:David,3:Mark	position1: 2, presenter1: David, position2: 3, presenter2: Mark

AUDIO

demands <fields> structure as parameter with

parameter1=AUDIO,

parmeter2=key,

parameter3=value

OR

connectionstring style

Note: This is for an audio mixer.

CROSSOVERCOMMAND

N/A

(*)

ACCESSORIES

TAKE_NEXT

(*)

SET_VIDEOSERVER_SALVO

N/A

(*)

Not implemented for templates

SWITCH_VIDEOSERVER_MIRRORING

N/A

(*)

Not implemented for templates

SWITCH_GRAPHICS_MIRRORING

TOGGLE,

ACTIVATE,

DE-ACTIVATE

-

ENABLE_GRAPHICS_MIRRORING

N/A

(*)

HOLD_VIDEO_TRANSITION

N/A

-

HOLD_AUDIO_TRANSITION

N/A

-

NCS

START_STATUS,

STOP_STATUS

RUNDOWN

STORY

ITEM

Specific for Open Media

TAKE_CONTINUE_POINT

N/A

(*)

RUNDOWN_NCS_RESYNC

N/A

(*)

RELEASE_BACKGROUND

N/A

(*)

VIDEO_PORT

N/A

Must be a comma separated list in the format:

command,port,parameter

For example: PLAY_PAUSE,A,PLAY.

Refer to the section Video Port Control Commands in the Viz Mosart User Guide.

Parameters with Placeholders

Control command parameters can include placeholders which are then populated with values found among the fields of a currently On Air, Viz Mosart item. A placeholder is defined as a string of characters, within curly brackets {placeholder}.
For example, a placeholder can be useful for transmitting values from the NCS, for use as control commands that will be executed when the template is taken On Air.

Example: Providing the clip name to be recorded from NCS.

In NCS, a column can be created for giving the name of the clip to be recorded with Viz Mosart. Then, in Viz Mosart Newsroom settings, map the column in Story External Metadata as follows:

Story External Metadata

<mostag mostagname="NCScolumn" mosart_action="item_variable" action_value="NCS_filename" format_type="String" />

In Manus file, the Mosart item will have the following fields (the value Clip1 is given from NCS):

Mosart Item

<fields>
     <field name="NCS_filename" value="Clip1" />
</fields>

Then, in Template Editor, the control command for the respective template is configured as follows:

Control Command

RECORD PREPARE {NCS_filename}_Test,Recorder,RecPort

When the template is executed, a clip with name Clip1_Test is prepared for recording.
